Introspecting Oracle SOA Cloud Service (SOA CS) Environment
A SOA Cloud Service (SOA CS) environment can be introspected to create a Platform Blueprint and Platform Model.
The article will guide users through the introspection process specifically for SOA CS environments.
Infrastructure Provider
Create a Cloud Infrastructure for MyST to access the SOA CS environment.
- Hover over Discover and click Cloud Services
- Click Discover > Cloud Infrastructure
- Enter a Name such as
Default - Click
- Enter the Name and Private Key Content and click
- Click

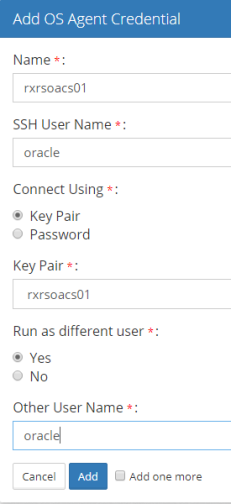

- Enter the Name, SSH User Name, Key Pair
- Select Yes for Run as different user and enter
oracleas the Other User Name
- Click

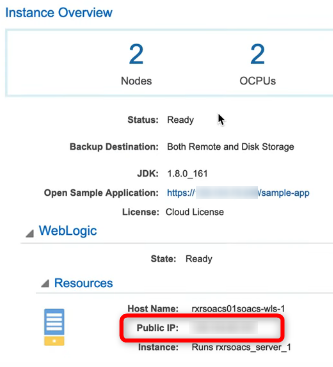

- Retrieve the Public IP from your Oracle Cloud account

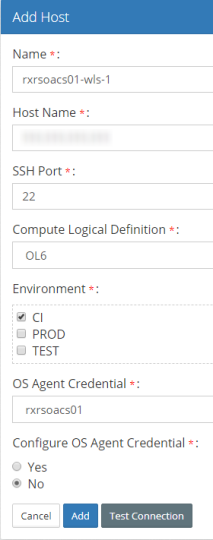

- Enter Name, Host Name and select Compute Logical Definition, Environment, OS Agent Credential
- Click
to validate the SSH connection is successful then click - Click
Discovery
The discovery process reads the SOA CS environment into MyST.
- Hover over Discover and click Cloud Services
- Click Discover > Soa Cloud Service
- Enter a Name and click
- Enter the Domain home directory, Platform Model, and Password and click Discover
- After the discovery finishes loading click
- Review your instance definition and click
Blueprint
- Click Manage > Platform Blueprints
- Select the SOA 12.2.1.2 Blueprint
- Below are the Blueprint configuration changes to align MyST with SOA CS
| Location | Property | MyST Value | SOA CS Value | Notes |
|---|---|---|---|---|
| WebLogic Domain Configuration > Coherence Clusters > defaultCoherenceCluster | Cluster Listen Port | 9991 |
7574 |
SOACS uses 7574 while SOA on-premise was 9991 |
| WebLogic Domain Configuration > WebLogic Deployment Targeting > Applications > wsm-pm | Targets | AdminServer, soa_cluster |
AdminServer |
(Optional) Remove the soa_cluster so only the AdminServer is targeted |
| WebLogic Domain Configuration > JDBC Data Sources > All OOTB | Test Table Name | SQL SELECT 1 FROM DUAL |
SQL ISVALID |
(Optional) Set the value for each out of the box (OOTB) Data Source |
| WebLogic Domain Configuration > JDBC DataSources | wlsbjmsrpDataSource | N/A | Name, Targets, JDNI Name, and Driver Class Name | (Optional) Only necessary if users want to change configuration for wlsbjmsrpDataSource |
| WebLogic Domain Configuration > JCA Adapters | Outbound Connection Properties | N/A | Any properties | MyST currently does not introspect Outbound Connection Properties. Add if you have any JCA Adapters configured. |
| WebLogic Domain Configuration > Clusters | Cluster Address | Auto computed by MyST | Auto computed by MyST (cannot be removed) | (Optional) MyST computation requires the Cluster Address to always be set |
| WebLogic Domain Configuration > AdminServer > Default Store | Directory | ${[rxr.wls.Domain-1].shareHome}/tlogs |
${[rxr.wls.Domain-1].domainAserverHome}/servers/${[rxr.wls.AdminServer-1].name}/data/store/default |
By default TLOGS are not defined in the WLS Console. In MyST we set them to their default directory. |
| WebLogic Domain Configuration > Managed Servers > Default Store | Directory | ${[rxr.wls.Domain-1].shareHome}/tlogs |
${[rxr.wls.Domain-1].domainAserverHome}/servers/${[rxr.wls.ManagedServer-1].name}/data/store/default |
By default TLOGS are not defined in the WLS Console. In MyST we set them to their default directory. |
Validation
Dry Run

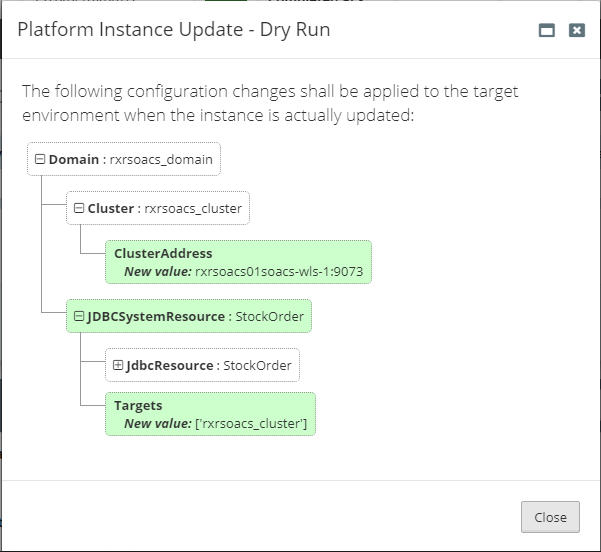

After the discovery and configuration of a Blueprint it is good practice to validate the changes against the SOA CS environment. A dry run functionality mimics the configuration applied by MyST and outputs the changes. Below is an example of changes to the Cluster Address and a JDBC Datasource.
Check For Drift
MyST has a check for drift function to compare the current MyST Platform Instance against the SOACS environment.
Below are safe and optional properties/values which can be used as MyST defaults in the Blueprint. They are the optional properties taken from the table above in the Blueprint section.
| Location | Property | MyST Value | SOACS Value |
|---|---|---|---|
| WebLogic Domain Configuration > WebLogic Deployment Targeting > Applications > wsm-pm | Targets | AdminServer, soa_cluster |
AdminServer |
| WebLogic Domain Configuration > JDBC Data Sources > All OOTB | Test Table Name | SQL SELECT 1 FROM DUAL |
SQL ISVALID |
| WebLogic Domain Configuration > JDBC DataSources | wlsbjmsrpDataSource | N/A | Name, Targets, JDNI Name, and Driver Class Name |
| WebLogic Domain Configuration > Clusters | Cluster Address | Auto computed by MyST | Auto computed by MyST (cannot be removed) |
FAQ
Question: Does MyST support an administrative user other than the weblogic username?
Answer: No, at this point a weblogic username is required. Admins can create an additional weblogic user.
