Platform Configuration

Provisioning Axway API Gateway

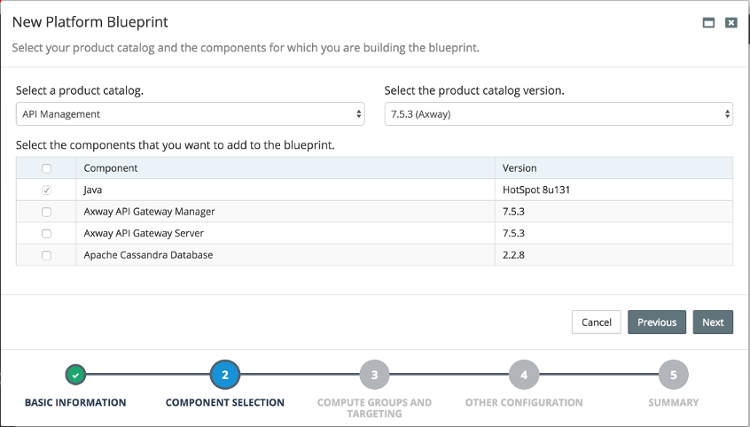

Axway Product Catalog

Axway support is provided by the following three products, all defined within the API Management product catalog

Component

Description

Apache Cassandra Database

Choosing this option will support the creation of Cassandra database instances, including multiple node clusters. Apache Cassandra support has been implemented to support API Gateway environments, however it is also possible to create standalone Cassandra DB environments.

Axway API Gateway Manager

Single administrative gateway instance in an API Manager configuration.

Axway API Gateway Server

A single API Gateway instance. This product is required when using the API Gateway Manager product, and is also used to define core configuration properties for the API Gateway product as a whole.

Assumptions

The implementation of Axway support assumes the use of certificate configuration. All properties required by products within MyST Studio must be specified explicitly. It is not currently possible to establish a cassandra database without all certificate/keystore parameters defined and the related items pre-existing on the hosts.

Creating an Axway Environment

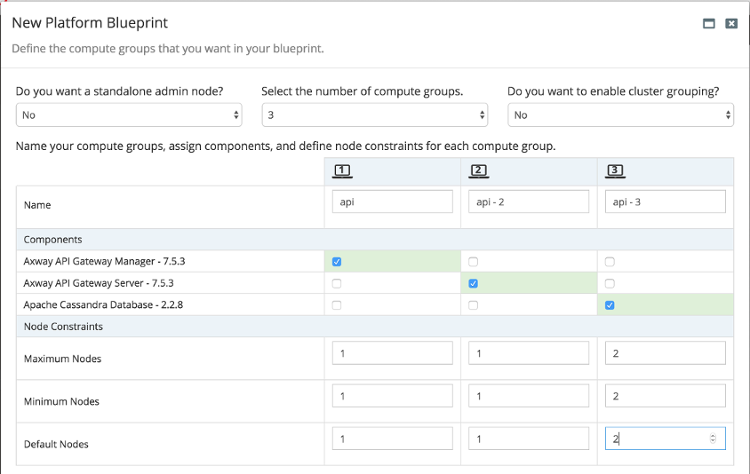

A single MyST blueprint and model can be used to create an Axway API Gateway environment including an API Manager node, multiple API Gateway nodes, and a Cassandra database cluster. For each product being used, a single compute group should be defined to control the targeting of specific products.

Note that the compute node targeted for Cassandra DB use has 2 nodes in the above image to support a 2 node cluster.

Required product configuration parameters are detailed below. Once a model has been fully configured for all required products, performing a Provision within MyST Studio will deliver everything required to create an environment across all nodes through automation.

Product Configuration Parameters

This section provides an example configuration for each supported product, listing all required properties for configuration.

Axway API Gateway Server

Name

Example Value

Explanation

api-manager-hosts

ip-192-168-146-224.us-west-2.compute.internal

Comma-separated list of fully-qualified domain names for hosts where API Manager will be configured

certificate-cer-file

/u01/communal/certificates/NonProd/Internal/Servers/esidev/esidev.cer

Certificate file used in LDAP configuration

certificate-folder

/u01/communal/certificates/NonProd/Internal/Servers/esidev

Directory to find certificate files in

license-path

/home/oracle/Axway.lic

Full path to license file on each node configured for API Gateway. This property is also used by API Gateway Manager.

os-group

oinstall

OS group to use when creating product installation

os-user

oracle

OS user to use when creating product installation

python-path

/usr/local/bin/python2.7

Full path to Python 2.7 (or above) binary on each node configured for API Gateway. This property is also used by API Gateway Manager, and in a model containing both API Gateway Server and Cassandra DB, can be used by Cassandra DB.

service-pack-file

APIGateway_7.5.3_SP6_Core_linux-x86-64_BN2018032339.tar.gz

Name of Axway API Gateway service pack file to install as part of patching product installation. This file will be found under the directory indicated by the install.dir MyST global variable.

Global Variables

Name

Example Value

Explanation

base.log.dir

/u01/app/logs

Root directory under which Axway log files are created

<node-id>.group=<Group Name>

Internal

See section below titled Multiple Axway Gateway Server Groups

<node-id>.private=<Private Address>

hostname1-priv

See section below titled Private Listen or Host Addresses

Multiple Axway Gateway Server Groups

To specify the respective Gateway group for each node in a configuration with Axway Gateway Server targeted to it, specify a global variable with the following syntax:

<node-id>.group=<Group Name>

For example:

rxr.infra.Compute-1.group=Internal

Each server with an Axway Gateway requires this parameter to be set. Currently MyST Studio will also auto-generate a recommended parameter for each relevant server using the IP address of the server. This variable will not be used during configuration, but should be set to the same group name. This duplication will be removed in the next release of MyST Studio.

Private Listen or Host Addresses

An optional 'private' global variable for node indicating private address.

<node-id>.private=<Private Address>

For example:

rxr.infra.Compute-1.private=ip-192-168-146-231.us-west-2.compute.internal-priv

Axway API Gateway Manager

Name

Example Value

Explanation

admin-host

192.168.146.222

IP address/host API Manager is configured on

admin-password

welcome1

Password used to authenticate for administration functions

admin-port

8090

Port used for administration traffic

certificate-folder

/u01/communal/certificates/NonProd/Internal/Servers/esiadmin

Directory to find certificate files in

certificate-cer-file

<full path to file>

Certificate file for admin gateway to use in certificate store (.cer file)

certificate-issuing-file

<full path to file>

Issuing authority certificate to use as part of certificate store (.cer file)

certificate-root-file

<full path to file>

Root certificate to use as part of certificate store (.cer file)

groups

Internal,External

Comma-separated list of all defined groups in API Manager instance

ldap-url

ldaps://hostname.domain:636

URL to locate LDAP server used by Gateway Manager

management-address

192.186.146.222

IP address/host used for management traffic

os-group

oinstall

OS group to use when creating product installation

os-user

oracle

OS user to use when creating product installation

process-account

SJRB\procdev_oag_internal

LDAP username used by process

process-account-password

welcome1

LDAP password used by process

| site-port | 8095 | Port to use for gateway traffic |

Apache Cassandra Database

Given the length of values for Cassandra Database parameters, explanations are not provided in the table below.

Name

Example Value

cluster-addresses

192.168.146.150,192.168.146.171

cqlrshrc-cert-file

/u01/share/dev.pem

cqlrshrc-key-file

/u01/share/dev.key

datacenter-name

GatewayDatacenter (default value)

listen-port

9042 (default value)

python-path

/usr/local/bin/python2.7

rack-name

GatewayRack (default value)

replication-factor

2

require-client-auth

true (default value)

ssl-algorithm

SunX509 (default value)

ssl-cipher-suites

TLS_RAS_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_256_CBC_SHA... (default value)

ssl-enabled

true (default value)

ssl-internode-encryption

all (default value)

ssl-keystore-file

/u01/share/dev.jks

ssl-protocol

TLS (default value)

ssl-store-type

JKS (default value)

ssl-truststore-file

/u01/share/truststore.jks

ssl-truststore-password

welcome1

user

oracle

Troubleshooting Axway Provisioning

Provisioning Axway environments can be complicated, particularly when determining why provisioning might have failed, in a configuration that can span multiple nodes. To assist with troubleshooting, especially in the early stages of the lifecycle of Axway support within MyST, a number of log files are created capturing output from particular steps in provisioning. These files exist in the temporary workspaces created by the MyST agent, and should be captured in a generated support artifact.

File

Information

configure-admin.log

Contains output from installation, patching and configuration of an Axway Admin Gateway node. Created by the Python script configure-axway-admin-python.py

configure-axway.log

Contains output from installation, patching and configuration of an Axway Gateway node. Created by the Python script configure-axway-python.py

kill-Internal.log

Contains output from killing any running Gateway process prior to a new installation of Axway software. Created by the Python script kill-process-matching-and-wait.py

kill-Node.log

Contains output from killing any running node manager process prior to a new installation of Axway software. Created by the Python script kill-process-matching-and-wait.py

Axway Support Roadmap

Upcoming MyST releases will provide support for the following:

Removal of redundant cluster configuration for Cassandra

Currently when configuring a Cassandra cluster a number of actions are performed on the second node of a cluster that repeat configuration already performed on the first node of a cluster. These redundant actions will be removed in future Cassandra DB support.

Switch to optional certificate configuration

The current mandatory certificate configuration performed for an API Gateway environment will become optional in future API Gateway support, allowing for a larger range of usage scenarios.
